1. Which of the following is an estimate of the order of magnitude of the radius of the Earth?

2. Two trucks X and Y are pulling a car out of thick mud along a straight path. The only other horizontal force acting on the car is a drag force opposite to the direction of motion. The diagram shows the direction of the force applied by truck X and the direction of motion of the car.

Which of the following vectors shows the direction of the force applied by truck $Y$?

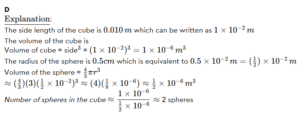

3. The diagram shows a cube of side length 0.010m and a metal sphere of radius $0.5cm$. The image below is not to scale.

If there is a set of these spheres that could be melted down, what is the estimated number of spheres required to construct the cube from the material?

4. A car moves clockwise in a circular path as shown. The direction of its instantaneous velocity at two different times is shown in the diagram.

Which of the following vectors shows the direction of the change in velocity?

A.			B.
C.			D.

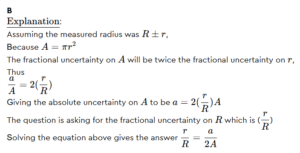

5. In finding the area of a circular metal plate, a student measures the radius $R$ of the plate and calculates the area to be $\pm a$, where $a$ is the absolute uncertainty on the area. Which of the following would give the fractional uncertainty on R?

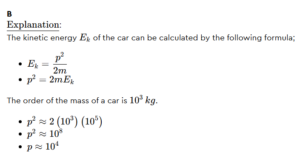

6. A car is moving with a kinetic energy of 10^5J.

Estimate the order of magnitude of its momemtum.

7. A ball is projected with an initial speed of 2ms^−1 making an angle of 35o with the horizontal as shown.

Which expression gives the vertical component of the velocity vector?

8. A rectangle has length L=(2 ± 0.1) cm and width $W=(3\pm 0.2)cm$.

What is the uncertainty of the perimeter of the rectangle?

9. How many significant figures are there in 0.000017000?

10. Which of the following gives the unit for work in fundamental SI units?

11. A spring of negligible mass and length of lolo​ is attached to a fixed point. When the spring is extended by an external force $F$, the length of the spring increases to $l$. The graph shows how the length of the spring varies with the tension in spring. The tension in the spring is equal to $k\Delta l$, where k is a constant and $\Delta l$ is the extension of the spring.

What are the gradient and y-intercept of the graph?

12. A pilot intends to fly a plane from point $A$ to point $B$. Due to strong winds, she points the nose of the plane in the direction shown by the vector $P$. Which of the choices below best represents the direction of the wind encountered by the plane?

A.			B.
C.			D.

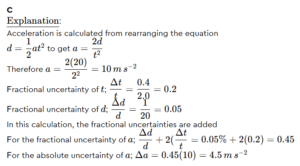

13. An object starting from rest travels a distance $d$ after a time $t$. If d=(20 ± 1)m, and the time is measured as t=(2.0 ± 0.4)s. Which of the following gives the correct values of the fractional and absolute uncertainties of acceleration?

14. An object is moving at constant velocity. Which of the following could be the free-body diagram representing the forces acting on the object?

A.			B.
C.			D.

15. As a truck is brought to rest, the brakes apply a force of 5.1×10^3 N. Which answer best describes the magnitude of the change in momentum of the truck if the brakes are applied for 3.0 $s$?

16. A body moves a distance of 1.5$km$ in 10$ks$.

Which of the following gives the correct magnitudes of both of distance and time?

17. Which of the following is a vector quantity?

18. A student models the relationship between the velocity v of a moving charge in a magnetic field, and the force F acting on it as $F=kv$, with $k$ being a constant

What are the units for $k$ expressed in fundamental SI units?

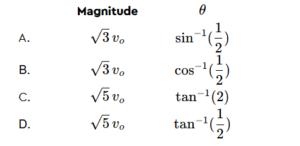

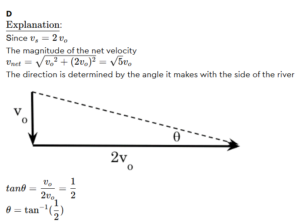

19. A stream flows east with a speed vs​. A boat points due south and moves with a speed vo​ relative to the water.

The ratio vo/vs=1/2​

Which of the following is correct about the magnitude in m s^−1 and the angle $\theta$ between the velocity of the boat and the side of the stream?

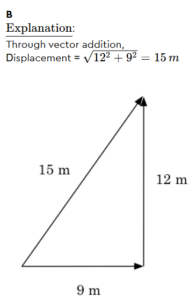

20. An object moves $9m$ east, then $12m$ north.

What is the magnitude of the total displacement of this object?

21. Vector $d$ makes an angle $\theta$ with the horizontal as shown. Its magnitude is $5m$ and the magnitude of its horizontal component dx​ is $3m$.

Which of the following is correct about the magnitude and direction of its vertical component?

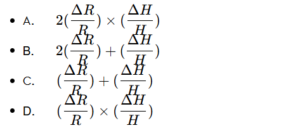

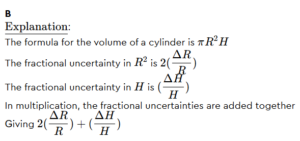

22. An experiment requires the measurement of the radius $R$ and height $H$ of a cylindrical battery to determine its volume. The uncertainty in R is $\Delta R$ and the uncertainty in $H$ is $\Delta H$.

What is the fractional uncertainty in the volume of the battery?

23. An electronic balance has a button with “tare” written on it. The reading of the balance is reset to zero when the “tare” button is pressed. Which of the following gives a reason why use of the “tare” button improves the measurement?

24. Express 0.04758 to 3 significant figures.

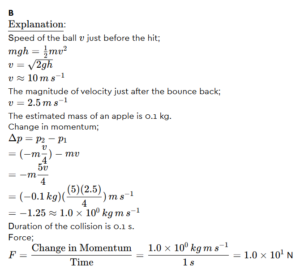

25. An apple falls 5m in height from a tree. It rebounds from the ground with a quarter of its striking speed. The apple is in contact with the ground for approximately 0.1 s. What is an estimate of the magnitude of the average net force on the apple when it strikes the ground?
