Explanation​:
The lengths of the arrows represent the amount of energy released in the transition.

From the formula E=hc/λ​

It is send that the energy of a photon is inversely proportional to its wavelength, therefore the decreasing order of wavelengths will be the increasing order of energies, which is given in C.

The lowest energy transition is shown as λ1​, therefore the λ1​ photon will have the longest wavelength.

λ2​ has the largest energy and therfore will have the shortest wavelength.

The wave model assumes that the energy from the light is delivered in one continuous wave. As the wavelengths of the lasers are equal, the property that would increase intensity would be the amplitude of the light wave.

In the particle model, light is composed of photons. The photon energy for each laser is equal, so a higher intensity is achieved by when there are more photons emitted per second.

Explanation​:
Count all possible de-excitations below n=4.
From $n=4$ electron can de-excite to n=3,2,1 ; 3 possible frequencies.
From $n=3$ electron can de-excite to n=2,1; 2 possible frequencies.
From $n=2$ electron can de-excite to $n=1$; 1 possible frequency.

Total of 6 frequencies.

Explanation​:
A change in the proton composition of a nucleus is needed to label it as a different nucleus. Both alpha ($\alpha$) and Beta ($\beta$) decay change the proton and neutron number of the parent nucleus therefore a different daughter will be produced. On the other hand, gamma ($\gamma$) decay involves only the loss of excess energy, not the change in nucleon composition therefore the daughter is the same as the parent.

Therefore, the answer is C.

Explanation​:

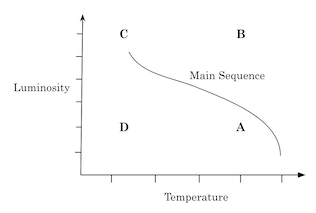

By considering the position of the red giants and the Sun on an H-R diagram, it is easy to say that red giants have higher luminosity and lower temperature than Sun. But they are not big enough like supergiants to have a volume that could include the Sun and inner planets inside.

Explanation​:

Energy of the incident photon ($E=hf$), goes into:

1. releasing an electron (hfA​ and hfB​ respectively), and
2. imparting kinetic energy to the electron. Since stopping voltage converts this kinetic energy into electrical potential energy, this is measured by eVA​ and eVB​ for respective materials.

Since the second plate takes more energy to release the electron (∵fB​>fA​), it gets less kinetic energy after release, and hence smaller stopping potential.

Explanation​:
A is a simple beta decay reaction.
B is an alpha decay reaction.
C is the type of fission reaction that occurs in a nuclear reactor for the generation of electricity with uranium as a fuel.
D shows a fission reaction that would require an input of energy to occur. It does not take place in a fission reactor.

Explanation​:

Moderators slow down the speed of the neutrons (not electrons) so that they can be captured by nuclei of fuel and initiate further fission reactions.

Explanation​:

The stars have greater mass have higher luminosity which results in a shorter time to run out of hydrogen. Therefore, the lifetime of a star on the main sequence is roughly inversely proportional to the mass of the star. Since the star has greater mass than the sun, time is less than $T$.

Moreover, the mass of the star is less than four times the solar mass. Hence, it is a moderate-mass star and it will become a red giant in its next evolutionary stage.

Explanation​:

A: From his postulates, Bohr showed that the energy of electrons is quantised. Hence, explained why they don't lose energy continuously. This explained why electrons don't spiral into the nucleus. So, A is correct.

B: Bohr's model works only for atoms and ions with single electrons. B is not true. Hence this is the correct choice.

C and D: Based on the assumption that angular momentum of atomic electrons is quantised, Bohr proved that their energies, and orbital sizes are also quantised. So, C and D are correct also.

Explanation​:

With more kinetic energy, alpha particles can overcome the electrical potential of the nucleus, and get close enough to experience strong nuclear attraction that is responsible for the deviation from Rutherford's model.

A smaller proton number for the target nuclei means a lower positive charge, and hence a lower potential barrier to overcome. Again, this enables alpha particles to approach the nucleus much closer, and increases the chance of strong nuclear interaction, thus causing a deviation from Rutherford's prediction.

Explanation​:
The number of protons on both sides of the equation must be the same.

2+A=B+0

Therefore the answer is D.

Explanation​:
A represents the best conditions for this, in that hydrogen nuclei are smaller than helium nuclei.
B shows at least one reactant particle identical to the only product particle. This is not balanced.
C shows a larger particle splitting into smaller ones. This is called fission.
D is also unbalanced because 2 larger atoms would not combine to form a smaller one.

Explanation​:
A.  The drop in the count rate is considerable but does not completely drop off to zero. The remaining count can easily be explained by the presence of background radiation. This indicates that the emission from the source is almost completely blocked by the sheet of paper. Alpha is the only type of radiation that can be nearly completely stopped by a sheet of paper.

B.  If both alpha and beta were being emitted in equal numbers, the sheet of paper would block the alpha but an appreciable amount would penetrate through the paper as beta radiation. So the count rate after the paper is inserted should be larger than the recorded value.

C.  If only beta radiation was emitted, the count rate would not have significantly diminished after the paper was inserted because beta radiation is able to penetrate through paper and if that is the only type of radiation, there is no reason for the count to fall that far.

D.  The information is sufficient to draw a reasonable conclusion. That conclusion is expressed in answer A.

Explanation​:

All photons carry the same energy (corresponding to the frequency of yellow light).

That means the maximum kinetic energy is the same for electrons in both cases. Hence equal stopping voltages.

Hence higher intensity implies larger number of photons per second, and thus larger number of electrons ejected, leading to a higher current. Thus i2>i1

Explanation​:
The moderator slows down neutrons so that they can cause successful fissions. Without a moderator, neutrons that are the product of other fissions have too much energy to interact with new nuclei such that they cause further fissions to occur.

Control rods block the neutrons to reduce the number of chain reaction fissions.

The heat exchanger transfers thermal energy to the external steam generator circuit.

A chain reaction is a process, not a specific material.

Explanation​:

Effective management of nuclear waste requires preventing contamination of the soil, water supply, and atmosphere. Burying nuclear waste in the soil can lead to soil and water supply contamination. Similarly, disposing of it in the ocean poses numerous hazards to marine life. Burning nuclear waste can also result in contamination of the atmosphere.

The most suitable method for long-term management is storing the waste in a disused mine with appropriate containment measures.
