Explanation​:
Summing the four electric field vectors from the individual point charges, the fields from the charge at the top left and the bottom right will cancel out. The fields from the bottom left and top right will add together to give a net field in the direction of the charge in the top right.

Explanation​:

• I. Correct: Since the particle is deflected toward to negative plate it is positively charged.
• II. Correct: In order not to be deflected magnetic force acts on the particle should be upwards. According to the right hand rule the magnetic field should be into the page.
• III. Incorrect: In order not to be deflected magnetic force acts on the particle should be in upwards. According to the right hand rule magnetic field should be into the page.

Explanation​:

The hydrogen nucleus is a proton, so it has positive charge.

The electric field lines are pointed upwards, meaning the higher potential is below the nucleus, or meaning that the force on the nucleus is upward.

The question asks for the largest work done, therefore we are looking for the largest displacement parallel and in the opposite direction the field lines. This is shown in D.

Explanation​:

When the bar magnet moves towards and away from the ring, the magnetic flux through the ring will change. According to Lenz's law, an emf, and therefore a current is induced to oppose the change in the flux. So as the bar magnet approaches the metal ring, the metal ring moves to the right due to repulsive forces that resist the decrease in distance between the ring and the magnet. Likewise, as the bar magnet moves away from the metal ring, the metal ring moves to the left.

$Z$ and $X$ are on the same equipotential line, and $Y$ and $W$ are on the same equipotential line, therefore the magnitudes of the changes in potential will the same.

Moving a particle from $Y$ to $X$ requires −10 eV of work, which means that +10 eV of work is done on the beta-minus particle by the field.

Y to $X$ and $Z$ to $W$ are opposite paths to each other, so the work done by the field on the same particle will be the negative of the work done by the field in the first situation, therefore −10 eV.

Explanation​:
I: A can only be kinetic energy as kinetic energy is always positive

II: B is the total energy as it has the same magnitude as the kinetic energy but is negative, and the sum of the value of graph A and graph B at all times

III: C is the gravitational potential energy as given in the data booklet (Ep=−GMm/r), therefore the statement is wrong

Explanation​:
The direction of the current is perpendicular to the magnetic field in both regions and the magnitude of the field is unchanged. So the magnitude of the force is $F$.

Using Fleming's left hand rule, direction of the force is

Explanation​:
The alpha particle has positive charge, therefore its deflection will be in the opposite direction of the electron. (answer A or B)

It has a larger mass, therefore the acceleration will be much smaller, explained by the following calculation:

• qE=ma
• a=qE/m​

The alpha particle has twice the charge of the electron, this doubles its acceleration.

It has much more mass than the electron, therefore the denominator in the above ratio increases by a larger factor than the numerator. This means the acceleration of the alpha particle will be much smaller than that of the electron. (its motion will change at a slower rate).

This can also be explained by 2-dimensional motion where there is no force on the horizontal but there is a smaller force on the vertical, meaning it will cover the vertical distance in a longer time, allowing it to travel further along the horizontal, giving the path in B.

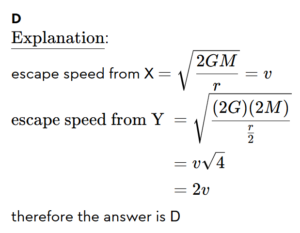

Explanation​:
Centripetal acceleration of an orbiting satellite is the gravitational acceleration of the planet, which is given by

g=GM/r^2

Since the gravitational acceleration is inversely proportional to the square of the orbital radius, the correct graphical representation is given in C

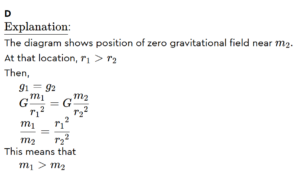

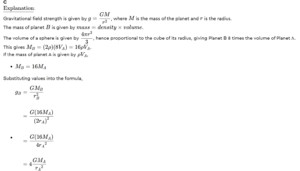

Explanation​:
The gravitational field strength varies inversely with the square of the distance from the center of the planet ($R$) to a given point.

g=GM(R)^2​

This means the variation of the gravitational field strength with $R$ is an inverse square law. Note, however, that the question asks for the relationship from the distance from the surface of the planet, therefore the graph starts at a finite value of field strength at the surface ($r=0$), then follows the shape of an inverse square curve.

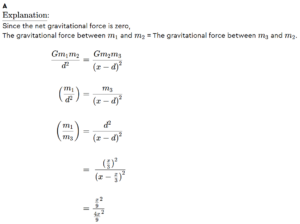

Explanation​:
Choice A is incorrect as it equates the gravitational field strength with the gravitational force and these two are two different physical quantities.

Choice B is the correct answer, since the gravitational field strength equals to force per unit mass; g=F/m​.

Choice C is incorrect, because the gravitational field strength is inversely proportional to the square of the distance between the center of mass of the planet and that point; g=GM/r^2​.

Choice D is incorrect, because the gravitational field strength depends on the mass of the planet; g=GM/r^2​.

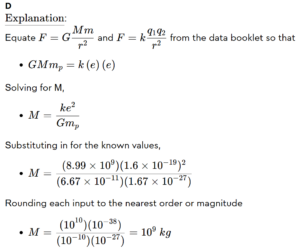

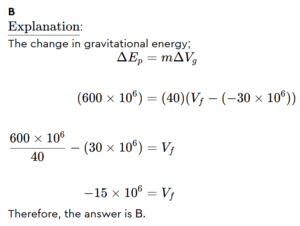

Explanation​:
According to Newton's third law, the two objects exert equal and opposite forces on each other.

The equation

• Fg=GMm/r​

also shows that the forces on the planets are equal in magnitude.

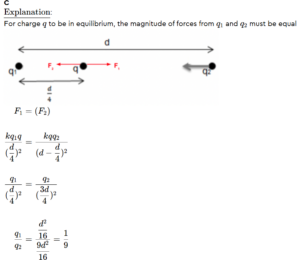

The electric field at X due to -Q points toward -Q. The field at X due to +Q points away from +Q, with the same magnitude at X as the field from -Q. Adding the electric field vectors gives a vector pointing to the left.

According to Fleming’s left hand rule, the electrons in the rod experience a force towards Side B at the top of the rod. The flow of electrons (negative charges) towards the top end of the rod will stop when the electrons at that end are numerous enough to push new electrons back by electrostatic repulsion. That is, an electric field is established in the rod where the top is negative and the bottom is positive. The corresponding field is from the bottom to the top (Side D to Side B)

Explanation​:
The pattern of equipotential surfaces belongs to two like charges. That indicates that field direction at points A and B should be in the same direction. Additionally, field lines and equipotential surfaces are at right angles to each other. The only answer that satisfies these conditions is A. Therefore, the answer is A.

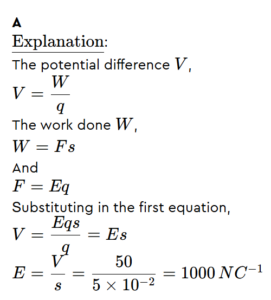

Explanation​:
The electric field strength direction is the same as the direction of the electric force.

The electric field will be directed out of the rod in all directions, as it contains uniformly distributed positive charges.

Getting the vector sum for the electric field, due to symmetry the total electric field strength will be directed out of the rod with an angle away from the midpoint of the rod as shown

Also we can think of B as the only correct solution, because it’s a positively charged rod, so the direction must be out of the rod.

Explanation​:
Conventional current will flow anticlockwise due to the orientation of the cell. To determine the force experienced by a current carrying conductor in a magnetic field, use (any appropriate hand-rule convention or) Flemming's left hand rule which states that if we arrange our thumb, forefinger and middle finger of the left-hand perpendicular to each other, then the thumb points towards the direction of the force experienced by the conductor, the forefinger points towards the direction of the magnetic field and the middle finger points towards the direction of the electric current.
